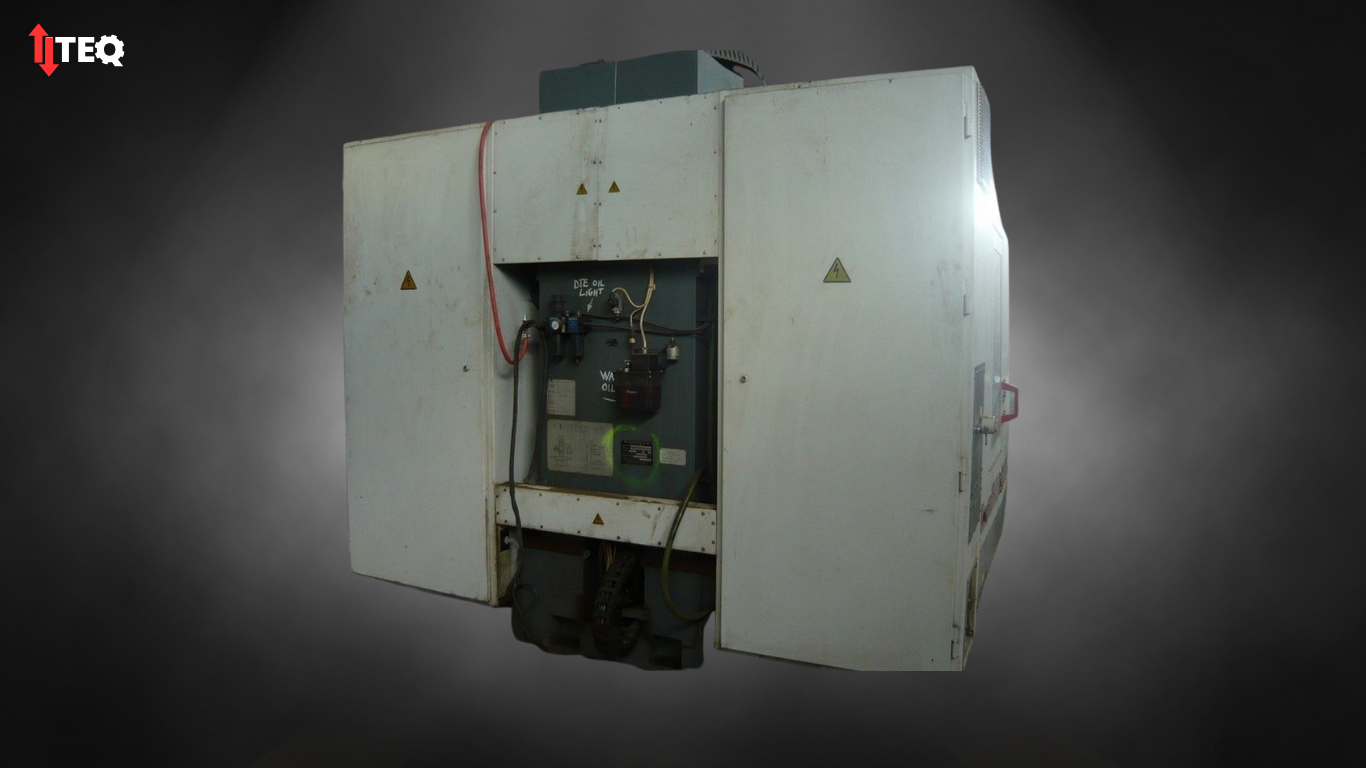

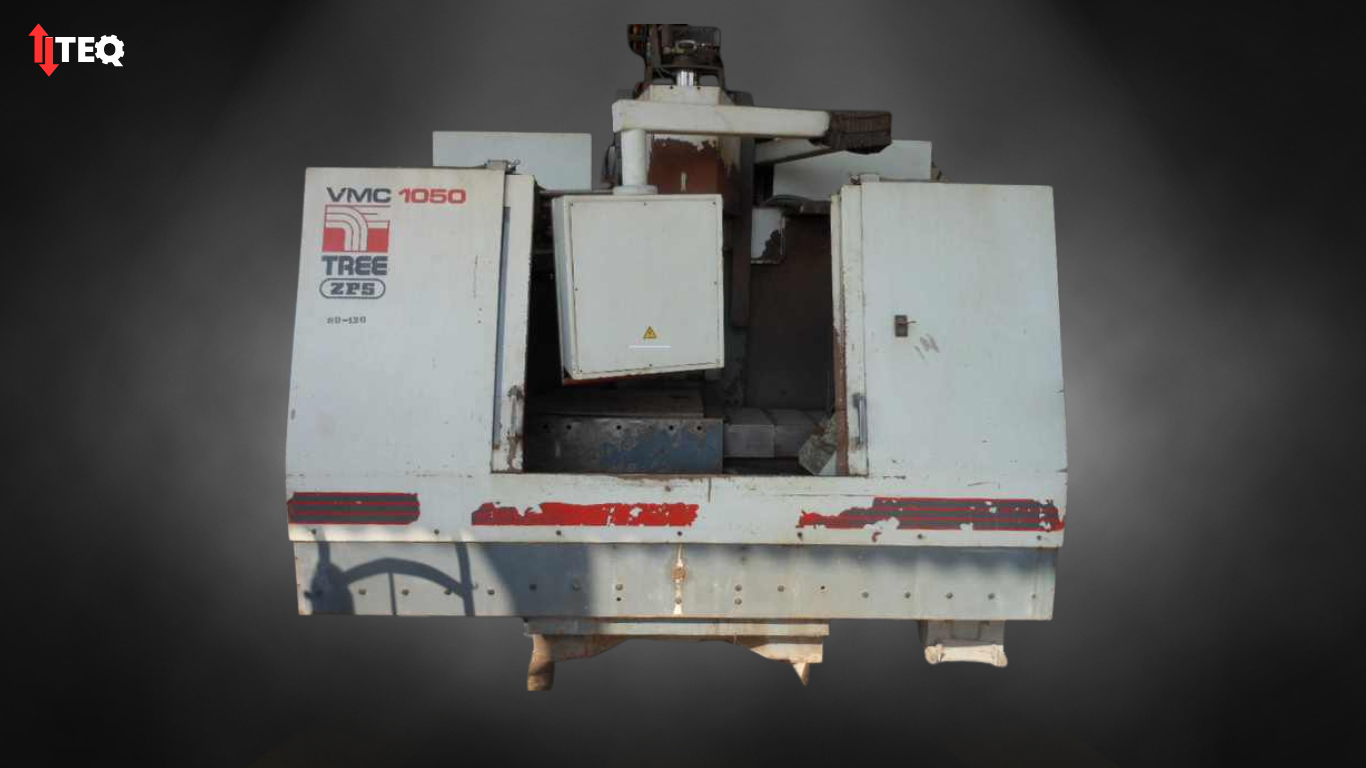

Centro de maquinado CNC VMC 1050/24

EN LAS CONDICIONES QUE SE ENCUENTRE

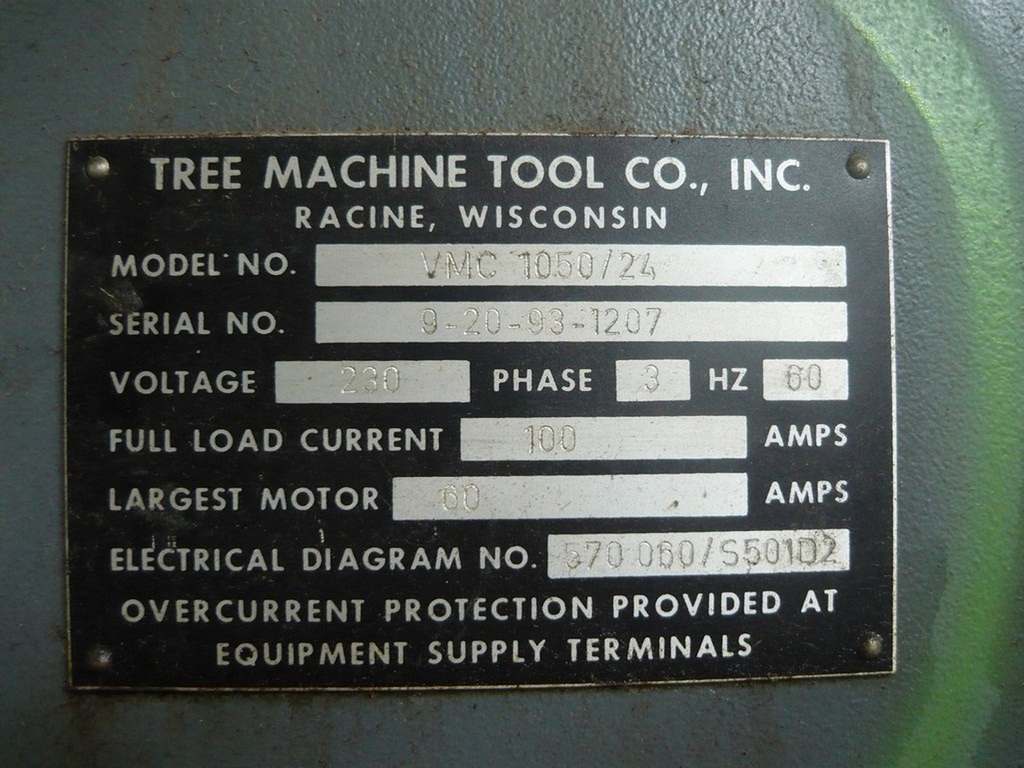

MODELO: TREE VMC 1050/24 CNC

• AUTOCON DYNAPATH DELTA CNC CONTROL CONSOLE
• 230V, 3PH, 60HZ
• FULL LOAD 100A
• LARGEST MOTOR 60A
• TABLE SIZE: 50″ X 22.8″ MAX
• TABLE LOAD CAPACITY: 2000LBS
• X-AXIS TRAVEL: 40″, Y-AXIS TRAVEL: 20″, Z-AXIS TRAVEL: 25″
• SPINDLE NOSE TO TABLE: 3.9″ – 28.9″
• SPINDLE SPEEDS: LOW RANGE: 0-2000RPM, HIGH RANGE: 2001-8000RPM
• SPINDLE TAPER: CAT # 40
• TOOL MAGAZINE CAPACITY: 24 MAX
• TOOL DIAMETER: 3.5″ WITH ADJACENT POCKETS, EMPTY- 6.3″
• MAX. TOOL LENGTH: 11.8″
• MAX. TOOL WEIGHT: 17.6LBS
• RAPID TRAVERSE RATE: 787IPM
• MAIN SPINDLE MOTOR: 15/20HP
• MACHINE WEIGHT: 15,000+LBS
• MACHINE DIMENSIONS: 9′ 7″ X 8′ 6″ X 9′ 3″.
